Core Features & Benefits

1. Dual Measurement Technology

• Magnetic Induction (Fe): Measures non-magnetic coatings (e.g., paint, powder coat) on ferrous metals (e.g., steel car bodies).
• Eddy Current (NFe): Measures non-conductive coatings (e.g., ceramic, rubber) on non-ferrous metals (e.g., aluminum, copper).
• Auto-Detect Function: Automatically switches between Fe/NFe modes based on the substrate material, ensuring precision across diverse applications 56.

2. High Accuracy & Resolution

• Measurement Range: 0-2000μm (0-78.74 mils), suitable for automotive paint (typically 50-150μm) and industrial coatings.
• Resolution: 0.1μm (below 1000μm) or 1μm (above 1000μm), ensuring sensitivity to 细微厚度 variations.
• Calibration: Factory-calibrated with standard thickness plates; supports user calibration for specific materials.

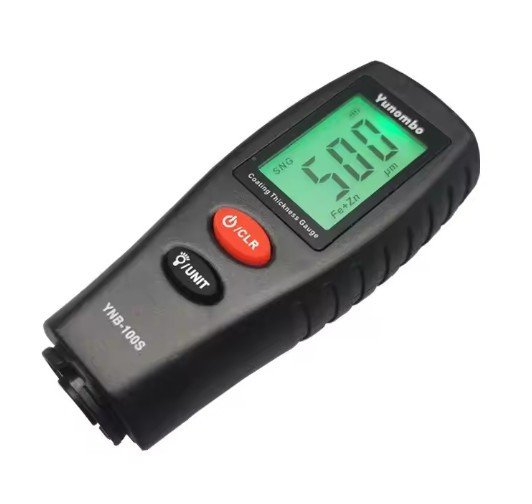

3. Digital Backlight LCD Display

• Large Screen: 1.8-inch TFT display with backlight for easy reading in low-light environments.
• Real-Time Data: Shows thickness values, measurement mode (Fe/NFe), battery status, and error alerts (e.g., low battery, unstable readings).
• Data Storage: Stores up to 999 measurements for later analysis or export.

4. Portable & Durable Design

• Compact Size: 125 x 65 x 30mm (4.9 x 2.6 x 1.2 inches), lightweight (200g) for on-the-go use.
• IP54 Water Resistance: Protects against dust and splashes, suitable for fieldwork.
• Ergonomic Grip: Textured surface ensures a secure hold during extended use.
